100ppm Explosion Proof Fixed Gas Detection Equipment With Relay Output 20mA

MOQ:	1PC

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Model NO.:

K800-D

Voltage:

DC 24V

Operating Temperature:

-20 Degree ~ +50 Degree

Signal Output:

4 To 20mA

Explosion-Proof Grade:

Exd Iict6

Certificate:

Warranty:

1 Year

Detection Range:

0-1000ppm

Low Alarm:

50ppm

High Alarm:

100ppm

Transport Package:

Carton

Specification:

1.8kg

Trademark:

KELISAIKE

Origin:

Nanjing, China

HS Code:

8531100000

Supply Ability:

300

Brand:

Kelisaike

Customized:

Non-Customized

Portable:

Fixed

Certification:

Gas:

Type:

Electrochemical Gas Analyzer

Samples:

US$ 250/Piece 1 Piece(Min.Order) | Request Sa

Customization:

Available | Customized Request

Stock:

1PC

Highlight:

Explosion Proof Fixed Gas Detection Equipment

100ppm Fixed Gas Detection Equipment

Relay Output Fixed Gas Monitoring System

Product Description

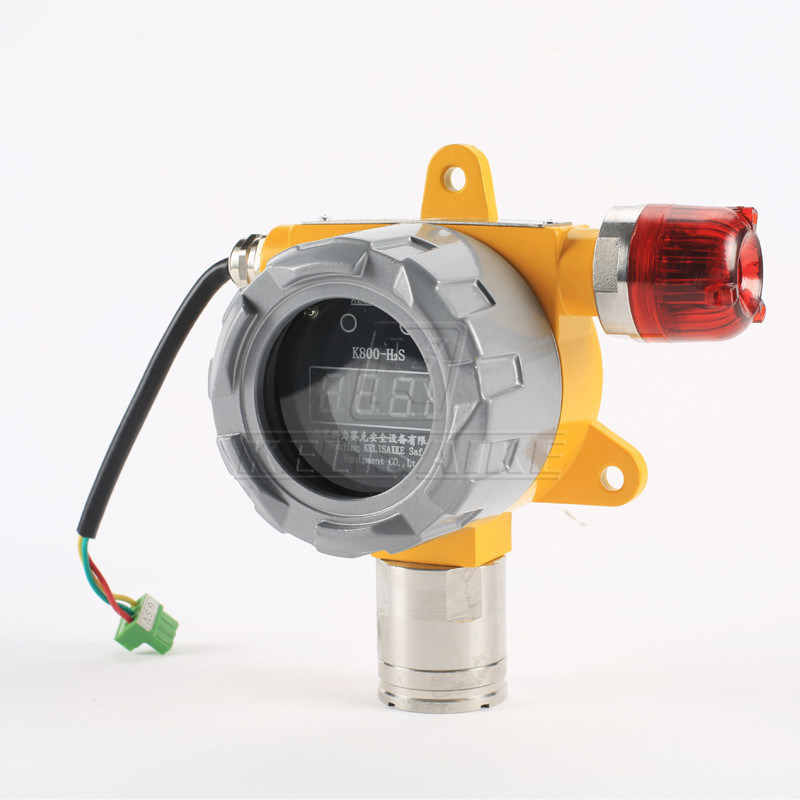

100ppm Explosion Proof Fixed Gas Detection Equipment With Relay Output 20mA 0

Power supply	24VDC
Output signal	4-20mA standard industrial signal output
Operating temperature	-20°C~+50°C
Display	Backlight LED
Relative humidity	15%~90% RH (non-condensing)
Atmospheric pressure	86~106Kpa
Explosion-proof grade	Exd IICT6
Warranty	1 year

No.	Detection gas	Range	Accuracy	90% response time	Min readout	Low/high alarm
1	PH3	0-5-2000ppm	±5%(F.S)	≤25s	0.01ppm	0.3/5ppm
2	O2	0-30%	±5%(F.S)	≤15s	0.1%vol	18.0%/23.0%
3	LPG(LEL gas)	0-100%LEL	±5%(F.S)	≤5s	1%LEL	25.0%/50.0%LEL
4	CO	0-1000 ppm	±5%(F.S)	≤25s	1 ppm	50ppm/100ppm
5	H2S	0-100 ppm	±5%(F.S)	≤30s	1 ppm	10ppm/20ppm
6	CH4	0-100%LEL	±5%(F.S)	≤5s	1%LEL	25.0%/50.0%LEL
7	NH3	0-100ppm	±5%(F.S)	≤50s	1 ppm	25 ppm /50 ppm
8	O3	0-20ppm	±5%(F.S)	≤60s	0.01ppm	0.2ppm/0.4ppm
9	CI2	0-20 ppm	±5%(F.S)	≤30s	0.1 ppm	1 ppm /10 ppm
10	H2	0-1000 ppm	±5%(F.S)	≤60s	1 ppm	50 ppm /100 ppm
11	SO2	0-100 ppm	±5%(F.S)	≤30s	0.1 ppm	2 ppm /10 ppm
12	NO	0-250 ppm	±5%(F.S)	≤60s	1 ppm	25ppm/50 ppm
13	NO2	0-20 ppm	±5%(F.S)	≤25s	0.1 ppm	3ppm/10ppm
14	Infrared CO2	0-5%vol	±5%(F.S)	≤60s	0.1%vol	1%vol/2%vol
15	Infrared CH4	0-5%vol	±5%(F.S)	≤60s	0.1%vol	0.1%vol/0.15%vol
16	Infrared C3H8	0-5%vol	±5%(F.S)	≤60s	0.1%vol	0.1%vol/0.15%vol
