Portable 2L Gas Cylinder Trolley Mounted Breathing Apparatus For Industrial Safety

isolation breathing protection SCBA air supply unit on trolly

>>> Overview

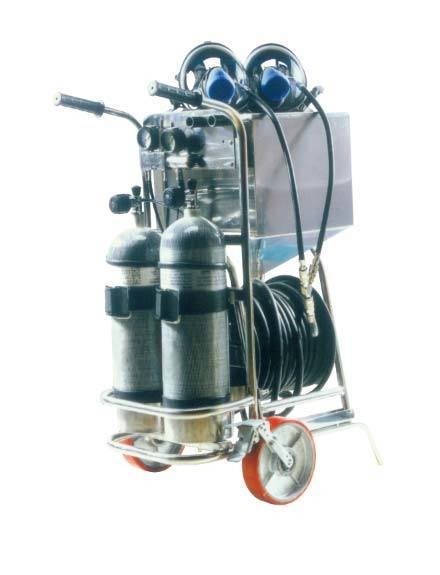

Movable long-tube positive pressure air breathing apparatus is a kind of safe and reliable breathing protection equipment that is convenient to maintain and can be used for long time. This model of breathing equipment can replace any air cylinder without affecting its use and able to work continuously.
As the breathing equipment has tight structure, easy to operate, portable structure (convenient cart), operators don't carry heavy items such as back-up and air cylinder etc. It has such features as light, convenient to move, especially suitable to work at narrow places such as long time maintaining, inspection, clearing up, painting and smelting work at such places with thick smoke, poisonous gas or anoxia inside oil tank or engine room. Usually, it's used for occasions as petrochemical industry, aerospace, underground coal mining, nucleus plant, chemical plant, painting industry, metallurgical industry, fire fighting, underground pipeline and sewage and gas pipeline etc.

1.    KL99-A01 full mask
A complete set contain with parts as following:

1.    KL99-A01 full mask
Three dimension spherical visor. The visual field could reach 91% with great optics. The lens has been rigidified and anti-fog processed thus can be without fog on surface for long time.
Fit for people's face, comfortable donning and good leak tightness.
Plug-in structure to quick connect with demand valve.
Leak tight mask is made of high quality flame resistant silicon rubber, oronasal cover use top silicon rubber, soft and high temperature resistant.
Flame resistant reticulated hood and strap are easy to wear.
Adopt high-intensity sound transmission diaphragm.
Oronasal guard suitable for wearers, decrease the inhalation carbon dioxide content.
2.    KL99-A02 backboard
 It is designed according to ergonomics to fit different users.The main body's weight is only 0.685kg. The tortuosity can be above 90 degree. It is made from a high strength material, which is chemical, high temperature and impact resistant.
3.    KL99-A03 warning whistle and pressure gauge
The pressure gauge is specified by scale ranged between(0-40)MPa, it is connected with the Reducer through a high pressure hose. The dial plate is made of fluorescent material, which enables user to read the figure in darkness.
The gauge surface is made of shock resistant material, protected by rubber cover, and is waterproof, quakeproof, and dustproof.
The alarming device is designed on the high pressure hose close to the pressure indicator. When cylinder pressure is below(5.5+ 0.5)MPa, the alarming whistle will sound alarming at above 90d B(A).
4.    KL99-A04 backpack
Back plate assembly consists of back plate, shoulder strap, waist belt, buckle, pressure reducer holder and cylinder fastener. Back plate is designed according to ergonomics, complying with the back shape of human body, making wearer more comfortable with a larger interface. It is injection moulded by flame resistant engineering plastics and carbon fiber, it is of high intensity and shock-resistance to protect from being damaged, while weight is only 0.68kg. Shoulder straps and belt are made of Nomex or KEVLAR, tear-resistant and flame-retardant. And they together distribute the weight of the apparatus effectively. Pressure reducer which is fixed by drift bolt on back plate can be replaced easily.
5.    KL99-A05 air supply valve
Demand valve, with small size, can be inserted mask in 360o promptly. Gas supply is above 500L/min.
Streamlined and elegant design, do not obstruct view
Manuel close valve has small resistance for opening
Small breathing resistance to make respiration comfortable
Easy operation and use
Ensure safe air supply by using manual force air supply button
Outer shell uses flame resistance high intensity engineering plastics
6.    KL99-A06 decompressor
The pressure reducer core adopts advanced technology with a design life of 15 years. The unique maximum gas supply is above 1000L/min, ensuring the user's enough respiratory volume.
The main parts that connected with the reducer:
Single or double cylinder
The medium pressure hose whose function is to supply air to the demand valve
The high pressure hose connected with the pressure indicator
7.    Gas cylinder and cylinder valve
Y shape design, with safe self lock device to prevent inadvertent close due to hard knock or incorrect operation.Unscrew the switch handwheel by rotating in the counterclockwise direction, it is regarded as the open condition and close vice versa. There is safety diaphragm set in cylinder valve, with explosion pressure at (37-45)MPa to prevent the deformation and explosion of cylinder due to inner high pressure.
8.    Mulfunctional fast join valve
Stainless steel, strong and durable. Traceless design, safe and reliable.
9.    The configuration can be 2L/3L/4.7L/6.8L/9L
Carbon fibre cylinder has the advantages of high strength, light weight, corrosion-resistant and anti-shocking.
Carbon fibre composite cylinder, inter layer is made of high intensity aluminum alloy
fully wrapped with carbon fiber composite. The glass fiber surface screw is M18*1.5.
>>> Technical Specification
