24V DC K1000 LPG Gas Detection Control Panel With Solid Relay Output

Name: 24V DC K1000 LPG Gas Detection Control Panel With Solid Relay Output
Brand: Nanjing Kelisaike Safety Equipment Co., Ltd.
SKU: K1000-16
Price: 250.00 USD
Availability: InStock

Brand Name:	KELISAIKE
Model Number:	K1000-16
MOQ:	1PC
Price:	$550.00/sets 1-499 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Document:

Product Brochure PDF

Detection Gas:

Combustible Gas, Toxic Gas And Oxygen

Supportable:

4 Or 16 Detectors / Probes

Interface:

RS485 Communication

Electric Control Device:

Solid Relay Output

Input Signal:

4-20mA

Voltage:

220V AC/50-60Hz

Display:

LED

Power Supply For Detector:

24V DC

Port:

Nanjing

Packaging Details:

Standard exporting package-Carton box

Stock:

1PC

Supply Ability:

100 Set/Sets per Month

Highlight:

24V DC Gas Detection Control Panel

LPG Gas Detection Control Panel

24V DC Gas Leak Detector Panel

Product Description

Fire alarm control panel:

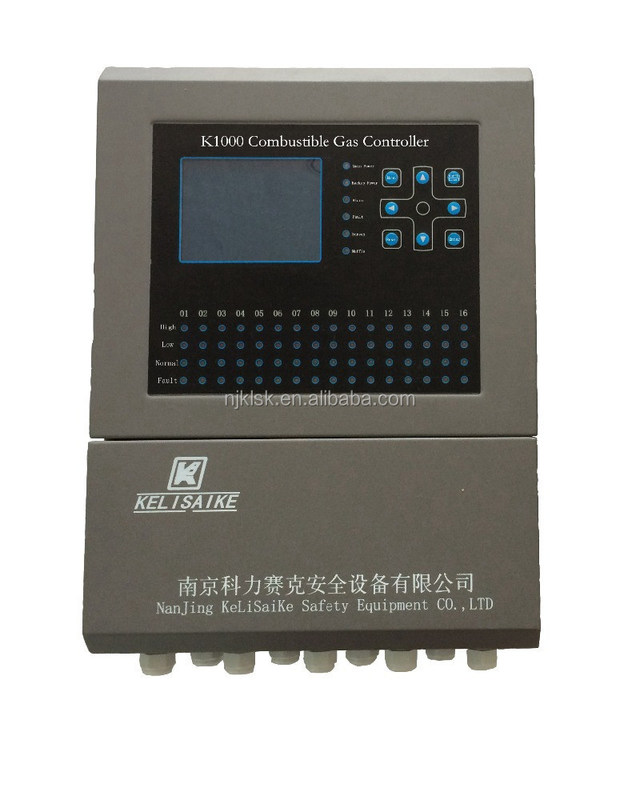

24V DC K1000 LPG Gas Detection Control Panel With Solid Relay Output 0
>>>Features:
1. Advanced MPU technology
2. Multi-channels capacity of system: 4,8 and 16channels are available
3. Work in patrol type
4. 2 or 3 BUS signal outputs, Can provide 24V power for the transmitter
5. Multi-channels real-time concentration display circularly and show real-time data(around 1-2 seconds show one channel)
6. Bright LED display
7. Receive any transmitter output signal of 4-20mA
8. RS485 Industrial field BUS
9. Programmable alarm operation value, low or high level alarm indication.
10. Respones time less than 2 seconds
11. Backup power supply: over 2 hours
12. Output Power: DC 24V/2.5A (Can provide power for many transmitters)
24V DC K1000 LPG Gas Detection Control Panel With Solid Relay Output 1

>>>Specifications:

Working Method:		Automatic Patrol
Alarm Level:		two levels' alarm. Users can set it.
Input signal:		4-20mA
Measurement Accuracy:		0.1%(F.S)
Stability:	Zero drift:	≤±2% (F.S)/6h
	Span drift:	≤±5% (F.S)/6h
Communication Interface:		RS485
Working Voltage:		AC 220V/50-60Hz
Capacity of System:		4, 8 or 16 Channels
Display Method:		Multi-passage concentration real-time display
Display Error:		<0.5%
Ambient Humidity:		10%-90% RH (non-condensing)
Ambient Temperature:		0-70ºC
Weight:		8.0kgs
