K800WS Fixed Dual Gas Detector Reliable Toxic Flammable Gas Detection

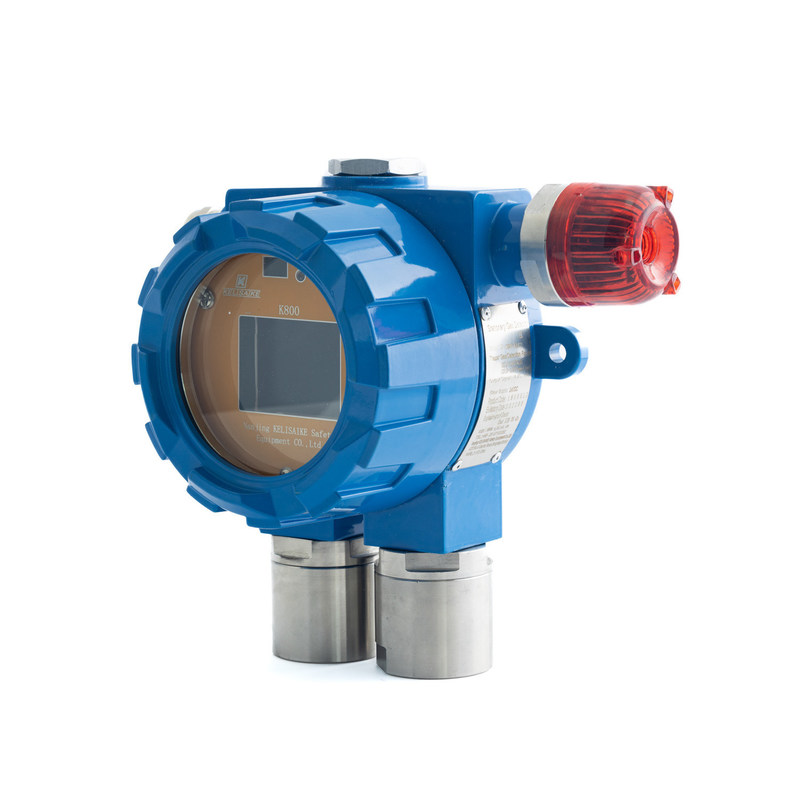

K800WS Fixed Dual Gas Detector

K800WS Fixed Gas Detector – Gas detection sensors are easily and economically deployable in both permanent and temporary installations. These low-power sensor assemblies utilize electrochemical technology for a long list of toxic gases. These advanced field devices consist of a K800 Model Series low-power gas detection sensor and a wireless transceiver packaged in a single enclosure. Power is provided by internal battery pack options: Lithium-ion rechargeable battery pack allows for 18 months of operation.

Application:

Combustible and toxic gases can leak virtually anywhere. Flanges, pump seals, valves, and storage tanks are all potential spots where a dangerous gas or liquid can make its way into a safe area.

Unfortunately, these places are often not located near the main part of the plant or other areas where detection instruments are installed.

Additionally, gas detection may be desired at the boundary of a facility where no infrastructure currently exists, making it prohibitively expensive to run conduits and cabling to these locations. Inconvenience and expense, however, do not mitigate the risk of a life-threatening or catastrophic leak.

Solution:

KELISAIKE’s Wireless Communication System includes a 800 MHZ radio that communicates to a gateway, providing reliable real-time detection data at distances of up to 1 mile with a clear line of sight. Accepting both analog and ModBus inputs, the system’s wireless communication is easily established to the gateway that is located near the PLC or DCS.

Every device in the network communicates through the telecom cloud Internet. This unique and innovative technology is designed to create a robust network that automatically routes around congestion and line-of-sight obstacles while improving throughput as subscriber device density increases.

If power is not available, a solar panel, controller, battery and charger can be provided to ensure up to 18 months of operation even with little to no sunlight.

Technical Specification:
