KL99-SABA Supplied-Air Respiratory Solution – Emergency Rescue & Industrial-Grade
emergency escape breathing device with warranty
,industrial-grade supplied-air respiratory solution
,KL99-SABA emergency rescue respirator

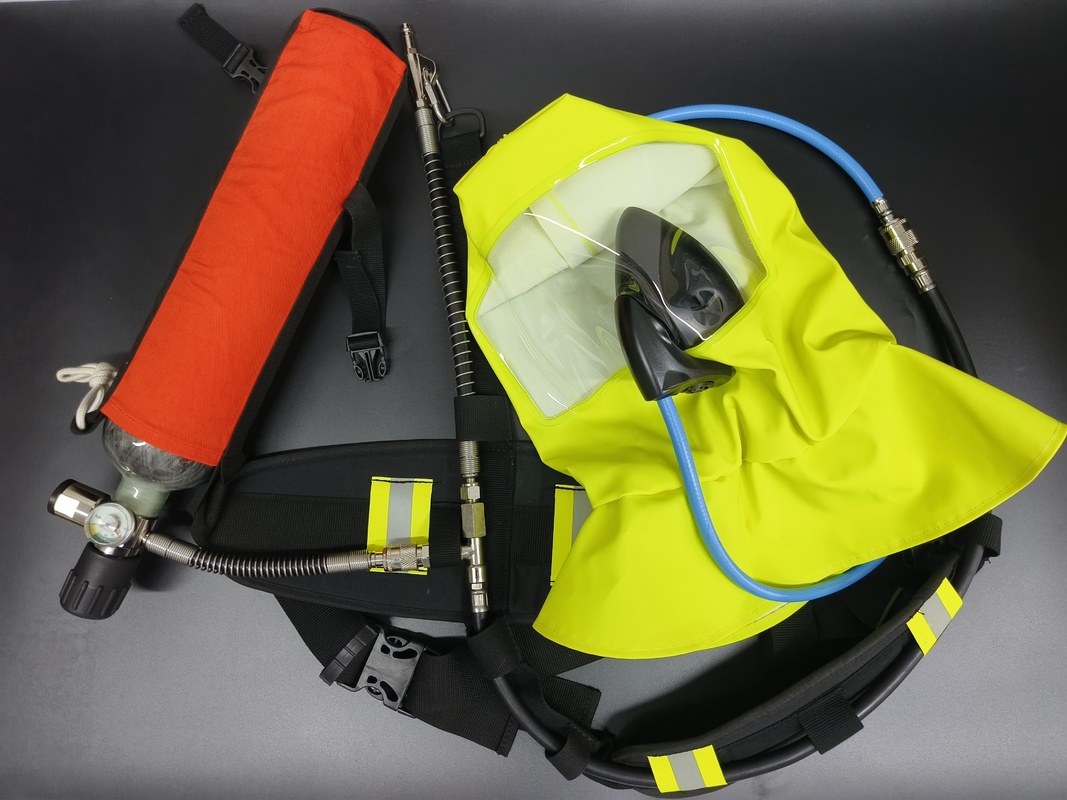

KL99-SABA Supplied-Air Respiratory Solution – Emergency Rescue & Industrial-Grade
The SABA is engineered to be versatile, comfortable, and cost-effective, delivering a streamlined design for industrial airline systems. It integrates the first-stage pressure reducer and cylinder valve into a single compact assembly—minimizing bulk and snag hazards, which is ideal for use in confined hazardous spaces or toxic atmospheres.
Components Overview – Revised Structure
1. Full-Face Mask (A01)
-
A molded flame-resistant silicone mask designed for ergonomic wear.
-
Features a spherical, anti-fog visor that provides up to 91% field of view for enhanced situational visibility.
-
Offers a snug fit with excellent sealing and easy donning.
-
Employs a plug-in connector for quick fixation to the demand valve.
-
Includes high-durability, high-heat-resistant silicone around the oronasal area and flame-retardant hood and straps.
-
Equipped with a sound-transmitting diaphragm to aid communication and an oronasal guard to reduce CO₂ buildup.
2. Air Supply Valve (A02)
-
A compact demand valve enabling rapid, 360° mask connection.
-
Delivers airflow above 500 L/min with minimal inhalation resistance.
-
Streamlined to avoid impeding sight lines.
-
Features an easy-to-operate manual shutoff, low resistance for breathing, and a flame-retardant exterior made of high-strength engineering plastic.
3. Harness Assembly (A03)
-
Crafted from high-spec nylon or kevlar blends with exceptional mechanical strength, fatigue resistance, and toughness.
-
Ergonomically contoured to distribute weight evenly and conform to the user's body for enhanced comfort during extended wear.
4. Tube Assembly (A04)
-
Includes high-seal quick-disconnect couplings for secure, efficient use.
-
Built with a durable high-quality breathing tube.
-
Incorporates a combined switch valve and distress whistle in-line to reduce overall system weight.
5. Cylinder Valve with Gauge (A05)
-
Merges cylinder valve and pressure gauge into one unit for real-time trend monitoring and safety during emergencies.
-
PG-S pressure gauge model ensures readability of pressure in low-light or turbulent environments.
6. Carbon-Fiber Composite Cylinder (A06)
-
Constructed with a lightweight aluminum liner wrapped in high-strength carbon fiber for resilience, corrosion resistance, and shock absorption.
-
Cylinder uses standard threads (e.g., M18 × 1.5) for universal compatibility.
7. Optional Extension Hose (A07)
-
High-grade extension hose designed to facilitate flexible and secure connection with supplied-air respirators.
- l Technical Specification
| Vol. | W.P of air cylinder | Max. air supply flow | Respiratory resistance | Alarm pressure | Net Weight | Service time for ref. | |
| Exhalation | Inhalation | ||||||
| 2.0L | ≤30MPa | ≥1000L/min | ≤1000Pa | ≤500Pa | 5.5±0.5M Pa | 1.5KG | 10min |
| 3.0L | ≤30MPa | ≥1000L/min | ≤1000Pa | ≤500Pa | 5.5±0.5M Pa | 2.1KG | 15min |
Note1: The weight of complete unit is based on lightest configuration. l
Note2: The service time is calculated based on medium work intensity (respiratory capacity: 40 L/min).
