High-Performance Breathing Air Cart with Adjustable Handle, Large-Flow Output Regulator and Carbon Fiber Cylinder

High-Performance Breathing Air Cart with Adjustable Handle, Large-Flow Output Regulator and Carbon Fiber Cylinder

MOQ:	1PC
Price:	USD1500-1700 pc
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Model NO.:

KL-99

Standard:

Q/Kj015-2002

Hydrostatic Pressure(MPa):

Working Pressure(MPa):

Gas:

Compressed Air

Gas Cylinder Volume(L):

6.8L,9L

Max Low(L/Min):

Not Less Than 1000

Inhalation Resistance(PA):

<500

Exhalation Resistance(PA):

<687

Usage:

Personal Protective Fire Fighting Equipment

Service Time:

Not Less Than 60mins At 30L/Min

Transport Package:

Carton

Specification:

76.5*28.5*52

Trademark:

KELISAIKE

Origin:

Nanjing, China

HS Code:

90200000

Supply Ability:

1000sets

Application:

Professional Equipment

Using Field:

Land

Suitable For:

Adult

Type:

Air Breathing Apparatus

Material:

Kevlar Or Nomex

Certification:

CE, ISO

Samples:

US$ 1700/Piece 1 Piece(Min.Order) | Request S

Customization:

Available | Customized Request

Stock:

10PC

Shipping Method:

LCL, AIR, FCL, Express

Description:

Mobile SCBA trolley supplying clean air for 2–4 users in confined or hazardous spaces, 90 m working radius.

Highlight:

breathing air cart adjustable handle

large-flow output regulator air cart

PPE breathing air cart

Product Description

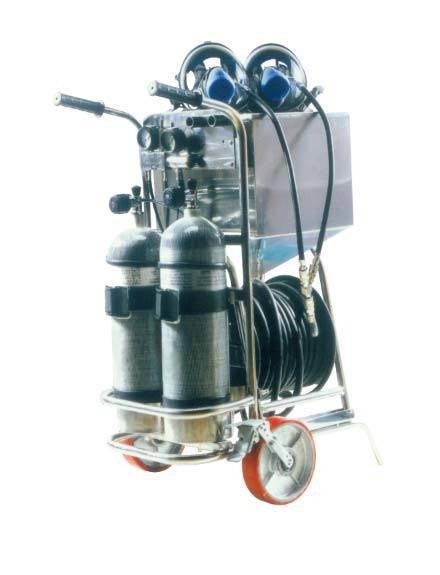

High-Performance Breathing Air Cart with Adjustable Handle & Large-Flow Output Regulator

Personal Safety Equipment Fire Fighting Breathing Respirator 6.8L Carbon Tanks

Product Overview

The movable long-tube positive pressure air breathing apparatus is a safe and reliable breathing protection system designed for extended use with easy maintenance. This equipment features interchangeable air cylinders that can be replaced without interrupting operation, ensuring continuous workflow.

With its compact design, intuitive operation, and portable cart configuration, this system eliminates the need for operators to carry heavy backpacks and cylinders. The lightweight, mobile design is particularly suitable for extended maintenance, inspection, cleanup, painting, and smelting operations in confined spaces with smoke, toxic gases, or oxygen-deficient environments such as oil tanks and engine rooms.

Applications include petrochemical industries, aerospace, underground coal mining, nuclear plants, chemical facilities, painting operations, metallurgical plants, firefighting, and underground pipeline systems.

KL99-A01 Full Face Mask

Three-dimensional spherical visor with 91% field of view and excellent optical clarity
Anti-fog, rigidified lens maintains clear visibility for extended periods
Ergonomic design ensures comfortable fit with excellent leak protection
Plug-in structure for quick connection with demand valve
High-quality flame-resistant silicone rubber construction
Flame-resistant reticulated hood and straps for easy wearing
High-intensity sound transmission diaphragm
Oronasal guard reduces inhalation of carbon dioxide

KL99-A02 Backboard

Ergonomically designed backboard weighing only 0.685kg with over 90-degree flexibility. Constructed from high-strength material resistant to chemicals, high temperatures, and impacts.

KL99-A03 Warning Whistle and Pressure Gauge

Pressure gauge with (0-40)MPa scale range
Fluorescent dial for visibility in darkness
Shock-resistant, waterproof, quakeproof, and dustproof construction
Alarm sounds at 90dB(A) when cylinder pressure drops below (5.5±0.5)MPa

KL99-A04 Backpack Assembly

Includes back plate, shoulder straps, waist belt, buckles, pressure reducer holder, and cylinder fastener. The ergonomic back plate is injection-molded from flame-resistant engineering plastics and carbon fiber, weighing only 0.68kg. Shoulder straps and belt are made of tear-resistant, flame-retardant Nomex or KEVLAR materials.

KL99-A05 Air Supply Valve

Compact demand valve with 360° insertion capability
Gas supply capacity exceeding 500L/min
Streamlined design without obstructing view
Low resistance manual close valve
Minimal breathing resistance for comfortable respiration
Manual force air supply button for emergency air delivery
Flame-resistant high-intensity engineering plastic outer shell

KL99-A06 Decompressor

Pressure reducer core with 15-year design life and maximum gas supply exceeding 1000L/min. Compatible with single or double cylinder configurations and connected via medium-pressure hose to demand valve and high-pressure hose to pressure indicator.

Gas Cylinder and Valve System

Y-shaped design with safety self-lock device to prevent accidental closure. Features safety diaphragm with explosion pressure range of (37-45)MPa for cylinder protection. Available in 6.8L and 9L carbon fiber composite cylinders with high strength, light weight, corrosion resistance, and shock resistance.

Multifunctional Fast Join Valve

Stainless steel construction with traceless design for strength, durability, safety, and reliability.

Certifications

Technical Specifications

Performance Specifications

Performance Index	4-Cylinder Device	2-Cylinder Device
Cylinder Material	Carbon fiber cylinder	Carbon fiber cylinder
Water Capacity	6.8L	6.8L
Working Pressure	30MPa	30MPa
Quantity	4	2
Decompression Valve Input Pressure	≤30MPa	≤30MPa
Decompression Valve Output Pressure	About 0.7 MPa	About 0.7 MPa
Maximum Output Flow	≥1000L/min	≥1000L/min
Safety Valve Opening Pressure	1.1~1.7MPa	1.1~1.7MPa
Alarm Pressure	5.5±0.5MPa	5.5±0.5MPa
Regulator Maximum Dynamic Inhalation Resistance	500Pa	500Pa
Medium-pressure Hose Length	Standard: 50m; Maximum: ≤90m	Standard: 50m; Maximum: ≤90m
*Packing Dimensions (LWH)*	900mm1000mm520mm	900mm970mm520mm

KL99 Carbon Fiber Composite Cylinder Specifications

Part No.	Volume (L)	Outside Diameter (mm)	Thread (mm)	Working Pressure (MPa)	Weight (Kg)	Length (mm)
KL99-C4	6.8	157	M18*1.5	30	3.9	530
KL99-C5	9.0	175	M18*1.5	30	5.3	560

Packaging & Shipping

Manufacturer Information

Nanjing KELISAIKE is a leading safety equipment manufacturer with one of the most comprehensive product ranges in mainland China's safety equipment industry. Founded in 2004, the company operates three subsidiaries and over 30 domestic sales service centers with total registered capital of 5.16 million Yuan.

Product portfolio includes portable gas detectors, fixed gas transmitters, wall-mounted gas detectors, gas detector control units, and air breathing apparatus. The company also provides professional OEM services with custom product design and construction capabilities.

Applications span petroleum, chemical, gas transmission, warehousing, municipal gas, firefighting, environmental protection, metallurgy, pharmaceuticals, and energy industries. Nanjing KELISAIKE maintains ISO9001 International Quality System Certification.

KELISAIKE Faith: People-oriented and technology-innovated

KELISAIKE Principle: Quality first, integrity-based

Our Services

12-hour response time for inquiries and questions
High quality products with competitive pricing
Comprehensive after-sales service support
OEM services available
Professional safety equipment manufacturer with trained technical team

Frequently Asked Questions

How about the Delivery time?

Samples prepared within 5 days after 100% T/T advance payment. Quantity orders delivered within 20 days.

What kind of payments does KELISAIKE support?

T/T, L/C, Western Union, Paypal & Cash all accepted.

What's the MOQ?

Minimum order quantity is 10 pieces, with samples available for quality inspection.

Do you charge for the samples?

Samples are charged at EXW price, with sample fees credited toward subsequent quantity orders.

Can you produce according to customers' design?

Yes, we are professional manufacturers and welcome OEM services.
