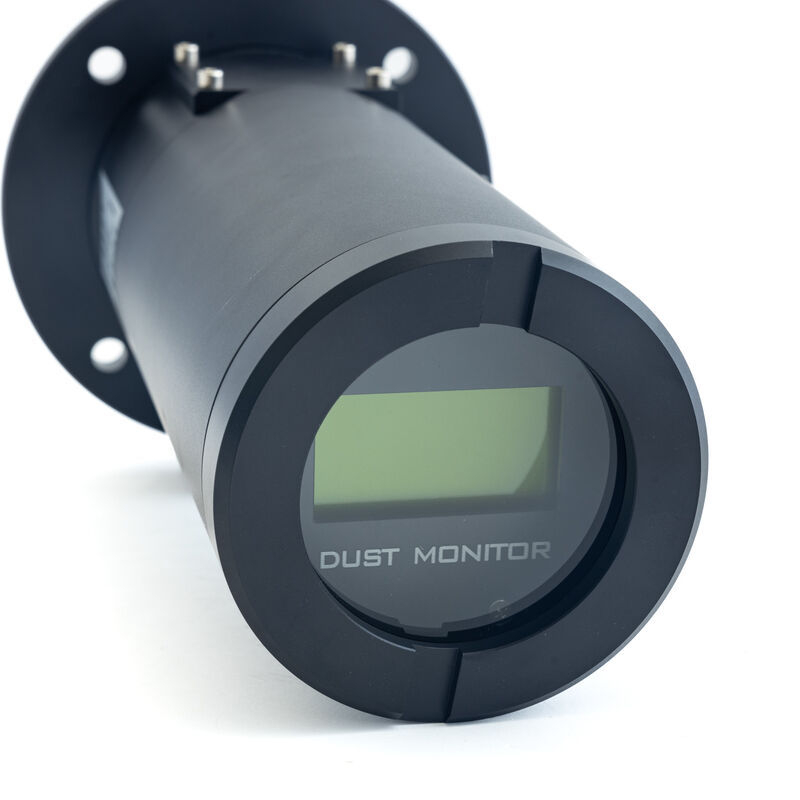

WT602 Dust Analyzer for Process Control and Pollution Source Monitoring

Brand Name:	KLSK
Model Number:	WT-602
MOQ:	1PC
Price:	$1,200.00/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

Document:

Product Brochure PDF

Warranty:

1 Years

Type:

Dust Analyzer

Customized Support:

OEM

Working Wavelength:

650nm

Product Name:

Dust Monitoring Equipment

Gas Analyzer Principle:

Scattered Light Backward

Application:

Online Stack Dust Monitor

Power:

24VDC+/-10%

Work Temperature:

-40 ℃-+50 ℃

Measure Range:

0~200mg/m3, 0~10g/m3

Signal Output:

(4-20) MA

Response Time:

≤ 10s

Packaging Details:

Standard exporting package-Carton box

Stock:

1PC

Highlight:

WT602 dust analyzer for pollution monitoring

dust meter for process control

industrial dust analyzer with warranty

Product Description

WT602 Series Continuous Gas Monitoring System - Industrial Waste Gas and Smoke Dust Meter

Working Principle

WT602B series products utilize laser backscatter technology to measure flue dust concentration. The embedded high-stability laser signal source passes through the flue and irradiates smoke particles. The irradiated particles reflect the laser signal, with reflected signal intensity varying proportionally with smoke concentration. Flue dust concentration is calculated using specialized algorithms.

Technical Specifications

Parameter	WT602 Specification
Principle	Laser backscatter
Working wavelength	650nm
Zero drift	±2%F.S./24h
Range drift	±2%F.S./24h
Indication error	±15%
Response time	≤ 10s
Diameter of flue	(1-15)m
Operating temperature	(-40~+65) ºC
Flue temperature	<200ºC
Flue pressure	<1Kpa
Signal output	(4-20) mA
Power supply	DC 24V ± 10%
