Infrared CH4 Gas Detector Wall Mounted for Industrial Safety

Name: Infrared CH4 Gas Detector Wall Mounted for Industrial Safety
Brand: Nanjing Kelisaike Safety Equipment Co., Ltd.
SKU: K500
Price: 350.00 USD
Availability: InStock

Brand Name:	KELISAIKE
Model Number:	K500
MOQ:	1PC
Price:	$200.00 - $500.00/sets

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Document:

Product Brochure PDF

Product Name:

K500 Fixed Gas Detector

Detection Of Gas:

Combustible And Toxic Gases

Output Signals::

4-20mA/RS485

Nominal Voltage:

DC 24V Fixed Gas Detector

Alarm System:

Vibration Alarm With Light,sound

Explosion-proof Grade:

Exibd II CT6

Size:

260*230*140mm

Service Life:

2-5 Years Fixed Gas Detector

Weight:

3500g Fixed Gas Detector

Display:

LCD Display Fixed Gas Detector

Port:

Nanjing Port Or Shanghai Port

Packaging Details:

Each set wireless vibrate gas leak detector Fixed gas detector alarm will be packed with the export standard carton package or aluminum box or as per customer require handheld Fixed gas detector.

Stock:

1PC

Supply Ability:

500 Set/Sets per Month

Highlight:

High Sensitivity Imported Sensors Gas Detector

Explosion Proof Grade Exibd II CT6 Wall Mounted Gas Detector

LCD Display Fixed Gas Detector

Product Description

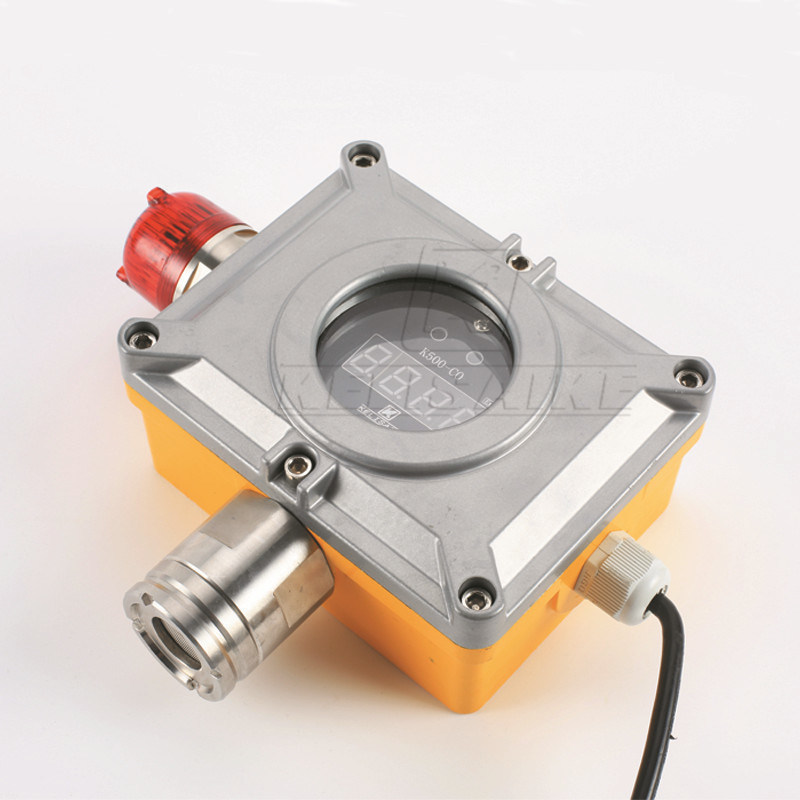

K500 Series Wall-Mount Gas Detector

The K500 digital portable gas detector is a high-performance wall-mounted device designed for industrial safety applications. Featuring imported high-sensitivity sensors and explosion-proof design, this detector monitors various gases including NH3 Ammonia, SF6, LPG, Methane CH4, Hydrogen, O2, CO2, and refrigerants.

Product Overview

The K500 series wall-mount gas detector offers long service life with high sensitivity imported sensors and explosion-proof design. It operates as part of an integrated system (with 4-20mA output analog) or as a stand-alone unit. Features include two discrete alarm levels (high & low), audible and visual alarms for comprehensive safety monitoring.

Key Features

High sensitivity world famous imported sensors
Bright, red flashing visible alarm and loud 90dB audible alarm
Waterproof and dust-proof design for harsh environments
Compatible with DCS (Distributed Control System)
Flameproof body design according to IEC61508
Programmable alarm operation values with low/high level indication
220V AC or 24V DC power supply with 4-20mA output analog
Color screen 2+2 digits LCD display showing real-time gas concentration
Comprehensive self-test: sensors, battery, circuit integrity, and alarm functions
Complete accessory package included
Certifications: CMC, Ex, MA (Safety Certificate for Coal Mining Products in China)

Technical Specifications

Item	Gas leak detector
Model NO.	K500 gas leak detector
Sensors	High sensitivity imported sensors
Sensor service life	2-5 years
Operating voltage	220V AC/24V DC
Display	4 digital LED display
Alarm buzzer	90db
Alarm mode	Acousto optic alarm
Ambient temperature	-20°C ~ +50°C / -50°C ~ +50°C
Relative humidity	15~90%RH (non condensation)
Material	Aluminum alloy and stainless steel
Detecting method	Diffusion
Dimension(mm)	160(L)126(W)78(H)mm
Explosion-proof grade	ExdII CT6
Weight	K500-D: 3.5kg, K500-N: 3.0kg
Package	Carton
Pcs/ctn	1pc/ctn
Ctn size	260x230x140mm
Payment terms	T/T
Warranty	1 year
