CO Fixed Gas Detector with 4-20mA Output for Industrial Use

Name: CO Fixed Gas Detector with 4-20mA Output for Industrial Use
Brand: Nanjing Kelisaike Safety Equipment Co., Ltd.
SKU: K500
Price: 420.00 USD
Availability: InStock

Brand Name:	Kelisaike
Model Number:	K500
MOQ:	1PC
Price:	USD 260-580/PC
Delivery Time:	15-20 working days
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

Document:

Product Brochure PDF

Specifications:

1.8kg

Voltage:

DC 24V

Alarm Type:

Vibration Alarm With Light, Sound

Signal Output:

4 To 20mA

Explosion-Proof Grade:

Exd Iict6

Gas:

O2,CO,CO2,LEL,H2S, Etc

Operating Temperature:

-20℃~+50℃

Detection Range:

0-2000ppm

Low Alarm:

50ppm

High Alarm:

100ppm

Packaging Details:

Carton, 35*20*15cm

Stock:

1PC

Supply Ability:

200 PCS Per Week

Highlight:

4-20mA Output Fixed Gas Detector

Explosion Proof Wall Mounted Gas Detector

High Sensitivity Sensors Industrial Gas Detector

Product Description

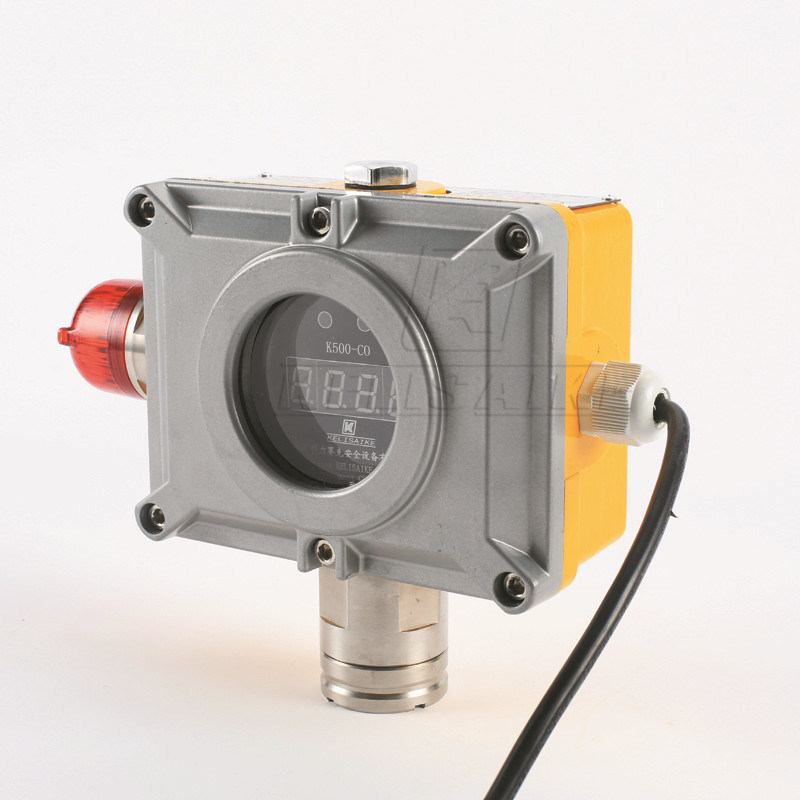

K500 Series Fixed Explosion Proof Gas Detector

The K500 series wall-mounted gas detector features imported high sensitivity sensors and explosion-proof design for long service life. This detector operates as part of an integrated system with 4-20 mA analog output or as an independent unit, featuring two alarm levels with distinct audible and visual signals.

Key Features

Imported high sensitivity sensors for accurate detection
Bright red flashing visual alarm and 90 dB audible alarm
Waterproof and dustproof design for harsh environments
Compatible with Distributed Control System (DCS)
Flameproof design compliant with IEC61508 standards
Adjustable low and high alarm values
220 V AC or 24 V DC power supply options
Certifications: CMC, Ex, MA (China coal mining safety approval)

Technical Specifications

Parameter	Specification
Power Supply	24 V DC or AC 220 V/50 Hz
Output Signal	4-20 mA standard industrial signal
Operating Temperature	-20°C to +50°C
Display	Backlight LED, 4-digit gas reading
Relative Humidity	15% to 90% RH (non-condensing)
Atmospheric Pressure	86 to 106 kPa
Explosion-proof Grade	Ex ibd IIC T6
Size	16 cm x 12.6 cm x 7.8 cm
Weight	3000 g
Distance	1000 m
Connecting Cable	3 core cable, 3 x 1.0 mm

Commonly Detected Gases

Gas	Range	Accuracy	Response Time	Min Readout	Low/High Alarm
PH3	0-2000 ppm	±5% F.S.	≤25s	0.01 ppm	0.3/5 ppm
O2	0-30%	±5% F.S.	≤15s	0.1% vol	18.0%/23.0%
LPG	0-100% LEL	±5% F.S.	≤5s	1% LEL	25.0%/50.0% LEL
CO	0-1000 ppm	±5% F.S.	≤25s	1 ppm	50/100 ppm
H2S	0-100 ppm	±5% F.S.	≤30s	1 ppm	10/20 ppm
CH4	0-100% LEL	±5% F.S.	≤5s	1% LEL	25.0%/50.0% LEL
NH3	0-100 ppm	±5% F.S.	≤50s	1 ppm	25/50 ppm
O3	0-20 ppm	±5% F.S.	≤60s	0.01 ppm	0.2/0.4 ppm
Cl2	0-20 ppm	±5% F.S.	≤30s	0.1 ppm	1/10 ppm
H2	0-1000 ppm	±5% F.S.	≤60s	1 ppm	50/100 ppm
SO2	0-100 ppm	±5% F.S.	≤30s	0.1 ppm	2/10 ppm
NO	0-250 ppm	±5% F.S.	≤60s	1 ppm	25/50 ppm
NO2	0-20 ppm	±5% F.S.	≤25s	0.1 ppm	3/10 ppm
Infrared CO2	0-5% vol	±5% F.S.	≤60s	0.1% vol	1%/2% vol
Infrared CH4	0-5% vol	±5% F.S.	≤60s	0.1% vol	0.1%/0.15% vol
Infrared C3H8	0-5% vol	±5% F.S.	≤60s	0.1% vol	0.1%/0.15% vol

Our Service

1-year warranty with lifelong maintenance
24-hour response to all inquiries
Technical support from experienced engineers
OEM and ODM services available
Factory located in Nanjing - visits welcome
Full quality check and qualification certificate with every shipment

Calibration Services

For calibration of KELISAIKE products, please contact our technical support team for assistance.
