Industrial High Precision Wall Mounted Fixed 4 in 1 Gas Leak Detector

Industrial High Precision Wall Mounted Fixed 4 in 1 Gas Leak Detector

MOQ:	1PC

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Model NO.:

K500

Gas:

Type:

Electrochemical Gas Analyzer

HS Code:

90200000

After-sales Service:

Lifelong Maintenance

Warranty:

1 Year

Brand:

Kelisaike

Customized:

Customized

Portable:

Non Portable

Certification:

Samples:

US$ 300/Piece 1 Piece(Min.Order) | Request Sa

Customization:

Available | Customized Request

Stock:

1PC

Product Description

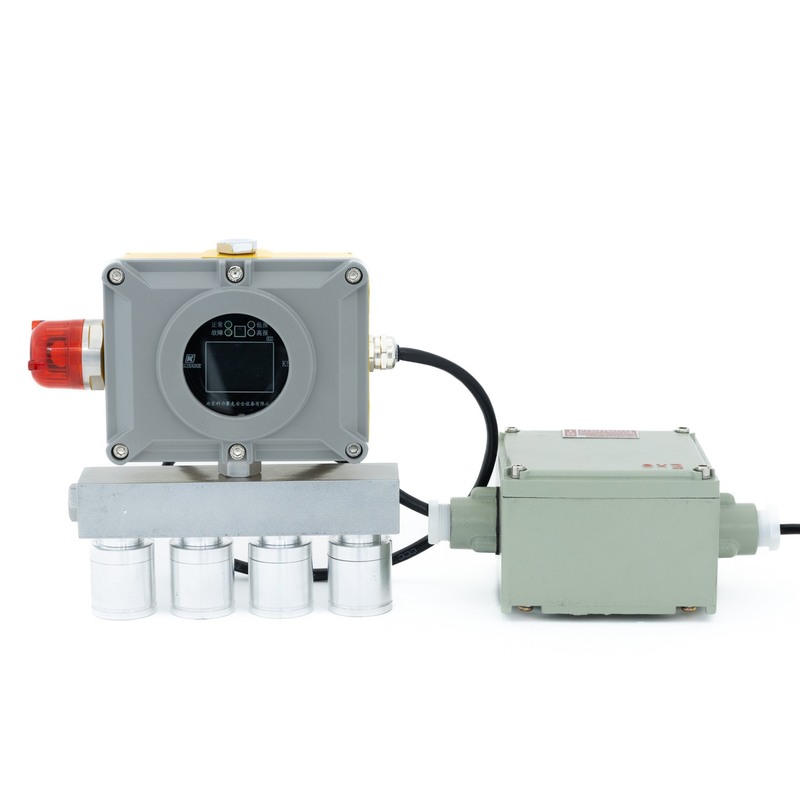

K500 Fixed Industrial Gas Leak Detector

The K500 fixed gas detector adopts internationally recognized sensors from the UK, USA, Japan and Germany, delivering stable measurement accuracy with ±5%FS precision. The diffusion sampling method ensures consistent gas detection without additional pumping systems.

A clear 4-digit LED display allows easy on-site reading of gas concentration. Combined with 4-20mA output signal, the detector supports both local monitoring and remote data transmission.

Thanks to its stable sensor performance and reliable signal output, the K500 series is suitable for long-term industrial gas monitoring applications requiring accurate and repeatable results.

Product Overview

This industrial-grade gas detector offers long service life and operates as part of an integrated system with 4-20mA output analog or as a stand-alone unit. Features include two discrete alarm levels (high and low), audible and visual alarms, and explosion-proof construction.

Key Features

High sensitivity world famous imported sensors
Bright, red flashing visible alarm and loud 90dB audible alarm
Waterproof and dust-proof design for harsh environments
Compatible with DCS (Distributed Control System)
Flameproof body design according to IEC61508
Simple and easy installation and maintenance
Programmable alarm operation values
220V AC or 24V DC power supply with 4-20mA output analog
Color screen 2+2 digits LCD display showing real-time gas concentration
Comprehensive self-test functionality
Complete accessory package included

Certifications

Technical Specifications

Parameter	Specification
Item	Gas leak detector
Model NO.	K500 gas leak detector
Sensors	High sensitivity imported sensors
Sensor service life	2-5 years
Operating voltage	220V AC/24V DC
Display	4 digital LED display
Alarm buzzer	90db
Alarm mode	Acousto optic alarm
Ambient temperature	-20°C ~ +50°C / -50°C ~ +50°C
Relative humidity	15~90%RH (non condensation)
Material	Aluminum alloy and stainless steel
Detecting method	Diffusion
Dimension(mm)	160(L)126(W)78(H)mm
Explosion-proof grade	ExdII CT6
Weight	K500-D: 3.5kg, K500-N: 3.0kg
Package	Carton
Pcs/ctn	1pc/ctn
Ctn size	260x230x140mm
Payment terms	T/T
Warranty	1 year
