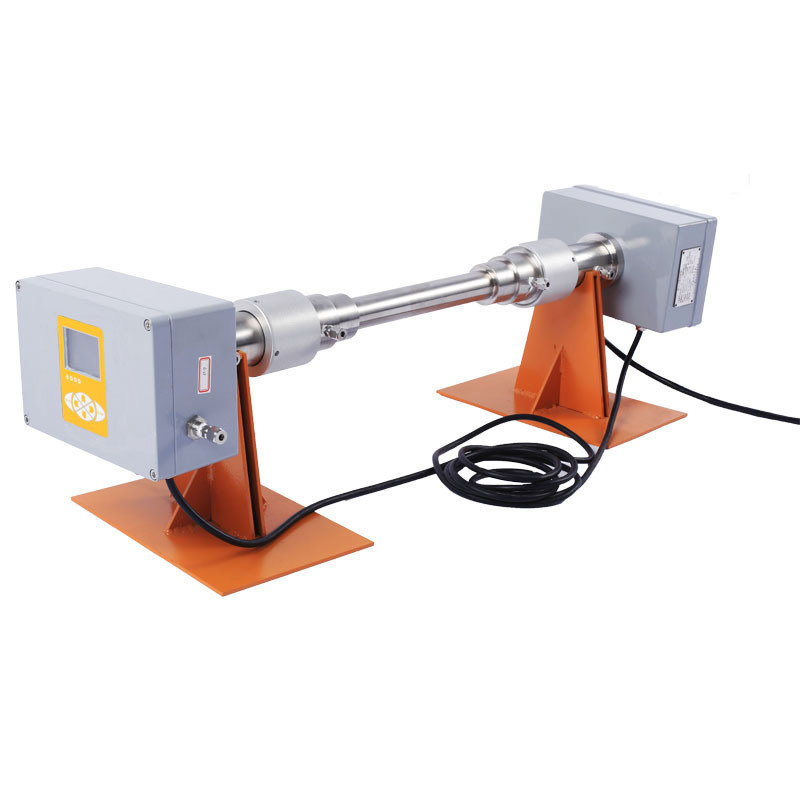

KF-200 in-Situ Non-Sampling Laser Gas Analyzer
in-situ laser gas analyzer
,non-sampling gas analyzer
,KF-200 laser gas analyzer
>>>Key Features
1. In-situ probe mounting, real-time monitoring
2. Explosion-proof design,building block design, field replacement of Laser module
3. Using magnetic pen control, convenient operation
>>>Technical Features
1. Adopting the TDLAS technology, thein-situ online gas analyzing
2. Double proof probe design, without positive pressure purge, no additional data processing unit, simple compact structure, high reliability
3. Using high-power lasers, no fiber coupling, anti-harsh working conditions (such as excessive dust condition)
4. Using patented technology of spot light path adjustment, easy for on-site installation
>>>Technical Specifications:
|
Measurement Principle
|
Tunable Laser Absorption Spectroscopy(TDLAS)
|
|
|
Technical Data
|
linearity error
|
≤±1%F.S.
|
|
Span drift
|
≤±1%F.S./6 months
|
|
|
Repeatability
|
≤1%
|
|
|
Explosion-proof
|
ExdIICT6 Gb
|
|
|
Protection levels
|
IP66
|
|
|
Response Time
|
Warming-up time
|
≤15 min
|
|
Response time(T90)
|
≤1s
|
|
|
Interface signals
|
Analogue output
|
2-wire 4-20mA signal input(Isolated, maximum load 750Ω)
|
|
Relay output
|
3-wire relay(24V,1A)
|
|
|
Digital communications
|
RS485/RS232/GPRS
|
|
|
Analog input
|
2-wire 4-20mA signal input (Temperature and pressure compensation)
|
|
|
Laser Safety Standards
|
GB 7247.1-2001 (idt IEC 60825-1:1993)
|
|
|
Operating Conditions
|
Storage Temperature
|
-30ºC~+60ºC
|
|
Ambient temperature
|
-40ºC~+80ºC
|
|
|
EMC
|
IEC 61000-4-2,IEC 61000-4-3,IEC 61000-4-4,IEC 61000-4-5,IEC 61000-4-11
|
|
|
Gas jet
|
0.3~0.8MPa Industrial nitrogen inlet and purification instrument gases etc.
|
|
|
Consumption
|
<20W
|
|
|
Power
|
24V DC(18-36V DC), 220V AC
|
|
Remark2: By increasing the optical path, proportionally lower detection limit.
|
NO
|
Detection gas
|
Detection limit
|
Detection range
|
|
1
|
O2
|
0.01%Vol
|
(0-1%)Vol., (0-100)%Vol.
|
|
2
|
CO2
|
10ppm
|
(0-1000)ppm, (0-100)%Vol.
|
|
3
|
H2S
|
20ppm
|
(0-2000)ppm, (0-100)%Vol.
|
|
4
|
HCl
|
0.1ppm
|
(0-50)ppm, (0-100)%Vol.
|
|
5
|
NH3
|
0.1ppm
|
(0-10)ppm, (0-100)%Vol.
|
|
6
|
C2H2
|
0.1ppm
|
(0-10)ppm, (0-100)%Vol.
|
|
7
|
CO2
|
10ppm
|
(0-1000)ppm, (0-100)%Vol.
|
|
8
|
H2O
|
0.3ppm
|
(0-50)ppm, (0-100)%Vol.
|
|
9
|
HF
|
0.02ppm
|
(0-5)ppm, (0-10000)ppm
|
|
10
|
CH4
|
0.4ppm
|
(0-40)ppm, (0-100)%Vol.
|
|
11
|
C2H4
|
0.6ppm
|
(0-60)ppm, (0-100)%Vol.
|
