Lightweight and Compact Portable Hydrogen Gas Detector for Hazardous Areas
manufacturer:
KELISAIKE
Category:
Portable Gas Detector
In-stock:
1PC
Price:
USD 120-880/PC
Payment Method:
T/T, Western Union, MoneyGram, Paypal
Shipping Method:
LCL, AIR, FCL, Express
Specifications
Weight:
120g
Working Voltage:
3 V Lithium Battery
Alarm Type:
Vibration Alarm With Light, Sound
Sensor Life:
2 - 5 Years
Explosion-Proof Grade:
Ex Ib Iic T3
Gas:
O2,CO,CO2,LEL,H2S, Etc
Ambient Temperature:
-20℃~+50℃
Display:
LCD Display
Detecting Method:
Diffusion
Highlight:
lightweight portable gas detector
,lightweight portable hydrogen gas detector
,co portable gas detector
Introduction

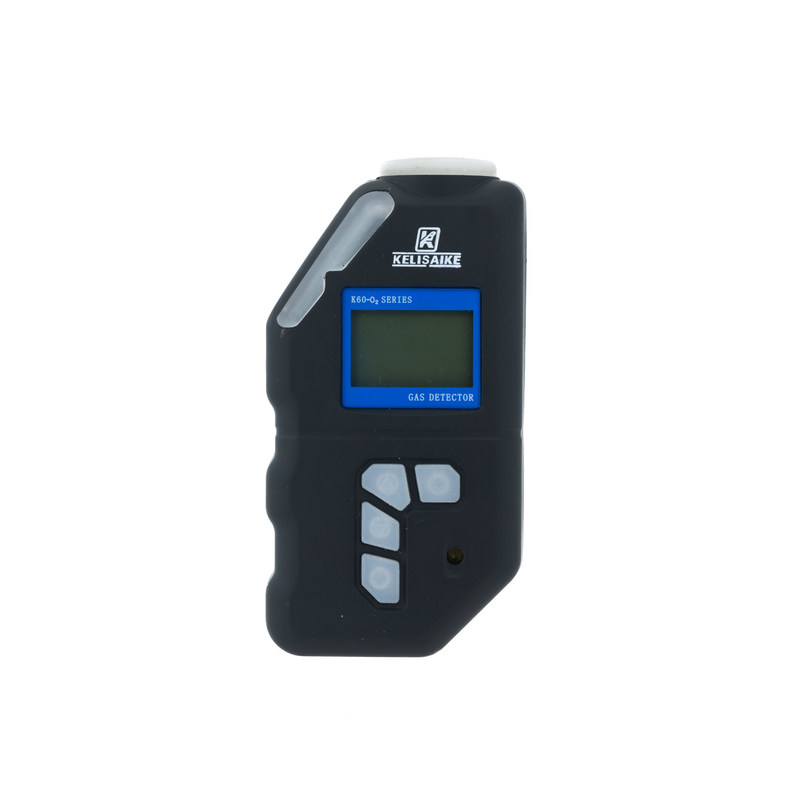

Lightweight and Compact Portable Hydrogen Gas Detector for Hazardous Areas
Product Description
The K60 series gas detector is a full featured device with unequalled cost efficiency. The detector is warranted for one year and maintenance free, including a battery replacement service.
Key Features
1. Imported world famous sensors with high sensitivity
2. Light weight and compact design (less than 120 g), easy to operate
3. Bright red flashing visual alarm
4. 90 dB audible vibration alarm
5. Excellent built-in vibration alarm ideal for environments with high ambient noises
6. Sturdy, protective, concussion-proof design for normal working in harsh environments
7. 3.0 V lithium battery, continuously working for about 24 months (non-alarming state)
8. The 2+2 digits LCD display shows the gas concentration in real time.
9. CERTIFICATIONS: CE, CMC, Ex, MA (SAFETY CERTIFICATE OF APPROVAL FOR COAL MINING PRODUCTS IN CHINA).
Technical Specification
| Alarm mode | Instantaneous alarm for the lower limit or the higher limit of the gas |
| Environmental temperature | -20°C~50°C |
| Environmental humidity | 15% - 90%RH(non condensing) |
| Atmospheric pressure | 86 - 106 Kpa |
| Supply voltage | 3 V Lithium battery |
| Dimension | 109 x 56 x 38 mm |
| Sensor life | 2 ~ 5 years |
| Continuous operation time | more than 20 hours(non-alarm 24 months) |
| Explosion-proof grade | Ex ib IIC T3 |
| Weight | 120 g |
| Applications | Oil and gas, Chemical, Refineries, Industrial safety, Power plants |
Common Used Gas Detection List
| No. | Detection gas | Range | Accuracy | 90% response time | Min readout | Low/high alarm |
| 1 | PH3 | 0-5ppm | ±5%(F.S) | ≤25s | 0.01ppm | 0.3ppm/5ppm |
| 2 | O2 | 0-30%vol | ±5%(F.S) | ≤15s | 0.1%vol | 18%vol/23%vol |
| 3 | EX(LEL/CH4) | 0-100%lel | ±5%(F.S) | ≤15s | 1%lel | 25%lel/50%lel |
| 4 | CO | 0-2000 ppm | ±5%(F.S) | ≤25s | 1 ppm | 50ppm/100ppm |
| 5 | H2S | 0-100 ppm | ±5%(F.S) | ≤30s | 1 ppm | 10ppm/20ppm |
| 6 | NO2 | 0-20 ppm | ±5%(F.S | ≤25s | 0.1 ppm | 3ppm/10ppm |
| 7 | NO | 0-250 ppm | ±5%(F.S) | ≤60s | 1 ppm | 25ppm/50 ppm |
| 8 | SO2 | 0-100 ppm | ±5%(F.S) | ≤30s | 0.1 ppm | 2 ppm /10 ppm |
| 9 | CL2 | 0-20 ppm | ±5%(F.S) | ≤30s | 0.1 ppm | 1 ppm /10 ppm |
| 10 | NH3 | 0-200ppm | ±5%(F.S) | ≤50s | 1 ppm | 25 ppm /50 ppm |
| 11 | H2 | 0-1000 ppm | ±5%(F.S) | ≤60s | 1 ppm | 50 ppm /100 ppm |
| 12 | HCN | 0-50ppm | ±5%(F.S) | ≤200s | 0.1ppm | 10ppm/20ppm |
| 13 | HCL | 0-20ppm | ±5%(F.S) | ≤60s | 0.1ppm | 5ppm/10ppm |
| 14 | CH4(IR) | 0-5%vol | ±5%(F.S) | ≤60s | 0.01%vol | customized |
| 15 | CO2(IR) | 0-5%vol (0-5000ppm) |
±5%(F.S) | ≤60s | 0.1%vol (1ppm) |
customized |
| 16 | PID(VOCs) | 1-1999ppm | ±5%(F.S) | ≤20 | 0.1ppm | customized |
| 17 | C3H8 | 0-5%vol | ±5%(F.S) | ≤60s | 0.01%vol | customized |
| 18 | O3 | 0-10ppm | ±5%(F.S) | ≤30s | 0.02ppm | 1ppm/2ppm |
